JOINTEC GAD structural floor joints
profilitec > Accessories
JOINTEC GAD structural floor joints JOINTEC GAD aluminium sliding expansion joints are floor profiles structurally designed to bear loads of large scale buildings or building elements. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement/expansion joints, chosen according to the expected use and flooring type. How to install structural joints INSTALLATION: • Anchor the side plates with: a) appropriate screws, 18cm on center, on both sides of the profile and b) two-part epoxy adhesive.
JOINTEC GADP structural joints in aluminium
profilitec > Accessories
JOINTEC GADP structural joints in aluminium JOINTEC GADP aluminium sliding expansion joints are wall and floor profiles structurally designed to bear loads of large scale buildings or building compounds. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type. The vertical anchoring flange of the profile can be installed on the wall facing upwards or downwards hidden in the gap between the wall and the floor. How to install structural joints JOINTEC GADP INSTALLATION: • Anchor the side plates with: a) appropriate screws, 18cm on center, on both sides of the profile and b) two-part epoxy adhesive.
JOINTEC GH joints with aluminium structure
profilitec > Accessories
JOINTEC GH joints with aluminium structure JOINTEC GH aluminium sliding expansion joints are structural profiles conceived for intense truck and forklift passage in civil and industrial applications. They are designed to bear loads of large scale buildings or building compounds. Installed in the interstitial space between two sections of a building or between two bays, this technical joint links interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type. For further information. Detailed installation instructions supplied upon request.
JOINTEC GS modular structural joints with large widths
profilitec > Accessories
JOINTEC GS modular structural joints with large widths JOINTEC GS structural profiles are wide, modular expansion joints designed according to seismic code requirements in high risk areas. Although the considerable widths of the profile reduces its load resistance, they are suitable for pedestrian traffic and hand trolleys such as stretchers or shopping carts. Installed in the interstitial space between two sections of a building or between two bays, this technical joint links interspaces, moving horizontally and vertically to accommodate a building’s structural and material settlement. When JOINTEC GS structural joints are necessary Designed to withstand structural movements of large or compound buildings. They must be installed at the spaces existing between two semi-attached parts making up the same building or between two different spans. They are able to connect these spaces allowing vertical, horizontal and transversal movements, depending on the settlements of the building, be they cyclic or permanent.
GAS: joint between screed and floor
profilitec > Accessories
GAS: joint between screed and floor Profilitec completes its joint range, introducing the GAS structural sliding joint. The GAS joint was conceived to be installed underneath flooring (tile, stone, etc.) and over the floor slab, differently than the GA range, which can only be installed under the slab. It is particularly suitable for commercial structures, airports, parking garages and railway stations with pedestrian and lightweight vehicles passage. The joint may be installed in the interstitial space between two sections of a building or between two building bays, according to technical specifications resulting from a structural evaluation of the building. Technical features joints JOINTEC GAS TECHNICAL CHARACTERISTICS: - The GAS joint has two anchoring flanges to be placed under the flooring. The perforated flange adheres to the tile adhesive and forms a single, solid, resistant anchoring element. - The joint absorbs the movement of the underlying structure through the sliding of central flanges which interlock, allowing compression and expansion of +2.5/-2.5 mm. - The sliding components also prevent dirt and dust buildup. The unique joint interlock between the central flanges and lateral supports also allows for vertical movement, compensating mechanical stresses due to structural movement +5/-5 mm.
JOINTEC GEP angular version upward anchoring of GE joints
profilitec > Accessories
JOINTEC GEP angular version upward anchoring of GE joints The structural joints of the Jointec GEP series are the GE joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: a lateral anchoring profile in aluminium that can be applied both "to go up" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.
JOINTEC GELP angular version upward anchoring of GEL joints
profilitec > Accessories
JOINTEC GELP angular version upward anchoring of GEL joints The structural joints of the Jointec GELP series are the GEL joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: a lateral anchoring profile in aluminium that can be applied both "to go up" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (47 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.
JOINTEC GMP angular version upward anchoring of GM joints
profilitec > Accessories
JOINTEC GMP angular version upward anchoring of GM joints The structural joints of the Jointec GMP are the GM joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium lateral anchoring profile that can be applied both to "climb ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.
JOINTEC GMLP angular version upward anchoring of GML joints
profilitec > Accessories
JOINTEC GMLP angular version upward anchoring of GML joints The structural joints of the Jointec GMLP series are the GML joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium lateral anchoring profile that can be applied both to "climb ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (47 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.
JOINTEC GDP angular version of the downward anchoring of the GEP joints
profilitec > Accessories
JOINTEC GDP angular version of the downward anchoring of the GEP joints The structural joints of the Jointec GDP series are the GD joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium side anchorage profile that can be applied both "to climb" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.
JOINTEC GDLP angular version downward anchoring of GELP joints
profilitec > Accessories
JOINTEC GDLP angular version downward anchoring of GELP joints The structural joints of the Jointec GDLP series are the GDL joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium side anchorage profile that can be applied both "to climb" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (47 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.
JOINTEC GD joints with supporting structure in aluminium and rubber
profilitec > Accessories
JOINTEC GD joints with supporting structure in aluminium and rubber JOINTEC GD aluminium structural expansion joints are composed of twin metal profiles joined by a central synthetic rubber insert. Designed to bear loads of large scale buildings or building compounds, they can be installed vertically or horizontally in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving vertically and horizontally to accommodate a building’s structural and material settlement. The structural bays should be further subdivided with smaller scale movement joints, chosen according to the expected use and flooring type.
JOINTEC GDL joints with supporting structure in aluminium and rubber
profilitec > Accessories
JOINTEC GDL joints with supporting structure in aluminium and rubber Structural joints with an aluminium bearing structure and a synthetic rubber insert. Designed to withstand structural movements of large or compound buildings. They must be installed on existing surfaces, also vertically, in correspondence with the spaces existing between two semi-attached parts making up the same building or between two different spans. They are able to connect these spaces allowing vertical, horizontal and transversal movements, depending on the settlements of the building, be they cyclic or permanent.
JOINTEC GDM structural joints in aluminium and rubber
profilitec > Accessories
JOINTEC GDM structural joints in aluminium and rubber JOINTEC GDM aluminium structural expansion joints are composed of twin metal profiles joined by a central synthetic rubber insert. Designed to bear loads of large scale buildings or building elements, they can be installed vertically or horizontally in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving vertically and horizontally to accommodate a building’s structural and material settlement. The structural bays should be further subdivided with smaller scale movement joints, chosen according to the expected use and flooring type. How to install joints JOINTEC GDM INSTALLATION: • Snap the synthetic rubber insert into the profile before aligning and positioning the expansion joint on site. • If necessary, protect the rubber insert with masking tape. • Anchor the side plates with: b) appropriate screws, 18cm on center, on both sides of the profile and c) two-part epoxy adhesive.
COFLEX CTL expansion joints with high resistance
profilitec > Accessories
COFLEX CTL expansion joints with high resistance COFLEX CTL expansion joints are composed of a metal structure and a flexible yet durable central infill that can be ground and polished on-site. Due to their resistance to corrosion and wear, the profiles are ideal for stone tile layings in industrial and commercial settings. The metal angle profile protects vulnerable tile edges against mechanical stress that can cause chipping and cracking; the metal flanges absorb and redistribute loads, material compression and expansion. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2.
COFLEX CT Metal expansion joint with insert
profilitec > Accessories
COFLEX CT Metal expansion joint with insert Expansion joint with a metal structure and an infill suitable for sanding and grinding. Ideal for porcelain tile. The robust, continuous metal angles of the profile protect tile edges, marble or stone and reduce mechanical stresses which can compromise the integrity of the flooring when exposed to intense passage. The metal parts on the sides of the joint are composed of Trimtec profiles with a rounded top edge and perforation designed to absorb elevated loads and tension which impact the flooring and become a single element with the tile and adhesive. The hardness of the EPDM infill is a perfect compromise between flexibility and resistance. Suggested flooring bays 16 m² (as per standard UNI 11499:2013) Typical flooring areas: retail shops, hotels, sporting centers and schools. How to install joints COFLEX CT If there is a splitting joint in the screed, align exactly the expansion joint you intend to install Once the tile adhesive has been applied with the most suitable tools in the joint and tile application area, press the joint wings into the adhesive and lay the tile with the care that the joint is never higher than the floor 0.5mm / 1mm lower. Cover the space between tile and joint with grout.
COFLEX CTR expansion joints with grindable rubber insert
profilitec > Accessories
COFLEX CTR expansion joints with grindable rubber insert Metal expansion joint with grindable insert, very resistant to the passage of loads. Ideal for ceramic tiles. The sturdy continuous metal corners protect the edges of the tiles, marble or stone and reduce mechanical stress, which in the presence of intense traffic risks compromising the integrity of the flooring. The metal side parts consist of a trimtec-type profile with a rounded upper edge and shearing to absorb high loads and tensions that affect the flooring making a single body with the adhesive and the tiles. The expansion zone in EPDM has excellent hardness with the right compromise between flexibility and strength. The height of the joint to be used must be chosen in correspondence with that of the flooring to be used and the quantity of thin set used for laying, the profile must in no case protrude from the flooring surface but must be less than approx. 0.5 ÷ 1 mm. The suggested backgrounds are based on the UNI 11499: 2016 standard: Indoor environments: 5m x 5m up to 6m x 4m External environments: 3m x 3m up to 4m x 2.5m Considering - Tile format - Joint width - Characteristics of the thin set - Support properties The size of the insert that can be sanded 5 mm involves a reduced visual impact but suggests its use in medium-small environments (shops, common areas, homes, private remittances) where the movements that the joint must compensate are also reduced even though with high loads to support. Suggested dimensions: COFLEX CTR Installation warnings If there is a joint in the screed, align exactly the expansion joint you intend to install Once the tile adhesive has been applied with the most suitable tools in the joint and tile application area, press the joint wings into the adhesive and lay the tile with the care that the joint is never higher than the flooring (0.5mm / 1mm lower). Cover the space between tile and joint with grout. How to install joints COFLEX CTR If there is a splitting joint in the screed, align exactly the expansion joint you intend to install Once the tile adhesive has been applied with the most suitable tools in the joint and tile application area, press the joint wings into the adhesive and lay the tile with the care that the joint is never higher than the floor (0.5mm / 1mm lower). Cover the space between tile and joint with grout.
COFLEX CBR joints: coupling of profiles and synthetic insert
profilitec > Accessories
COFLEX CBR joints: coupling of profiles and synthetic insert COFLEX CBR is composed of a twin double metal profile to host the internal rubber seal. This product has been designed to ensure a certain grade of protection to the tile and relative work load it may have to bear. The synthetic rubber insert efficiently compensates and absorbs flooring movements along with the covering material. COFLEX CBR is suitable to bear distributed weights and tensions. Select a joint with the height matching exactly the tile thickness, the joint must not rise above the level of covering surface but should be laid 0,5 ÷ 1 mm below the edge of the tiles. Suggested flooring bays 10-25 m² (as per standard UNI 11499:2013). Typical flooring areas: retail shops, hotels, sporting centers and schools.
COFLEX CB couplings: coupled profiles and synthetic gasket
profilitec > Accessories
COFLEX CB couplings: coupled profiles and synthetic gasket COFLEX CB profiles are composed of twin metal profiles joined by a central synthetic resin seal. Designed to bear distributed loads, the vertical edge has a patented dovetailed internal cavity which maximizes grout grip and tile edge protection. The central rubber insert absorbs and redistributes differential movement within the tile surface. The profile size is chosen according to the tile thickness and should remain 5 +/- 1mm below the floor elevation. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16 - 25m2.
COFLEX CBL expansion joints formed by the coupling of 2 profiles
profilitec > Accessories
COFLEX CBL expansion joints formed by the coupling of 2 profiles COFLEX CBL profiles are composed of twin metal profiles joined by a central synthetic resin seal. Designed to bear distributed loads, the vertical edge has a patented dovetailed internal cavity which maximizes grout grip and tile edge protection. The central rubber insert absorbs and redistributes differential movement within the tile surface. The profile size is chosen according to the tile thickness and should remain. 5 +/- 1mm below the floor elevation. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16 - 25m2.

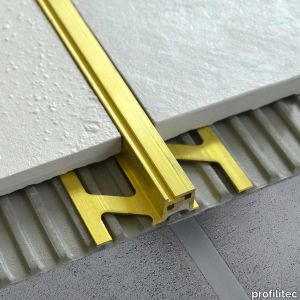

COFLEX CK metal expansion joints
profilitec > Accessories
COFLEX CK metal expansion joints COFLEX CK technical sliding expansion joints are conceived for thin-set installations. Two metal sides interlock and slide with an internal gap of +/- 2mm, redistributing differential movement due to material compression and expansion. The profile is supplied already assembled in a “neutral” position, held together by an elastic gasket in the lower profile section. It offers durability and high resistance to vertical loads with a modern design. Suggested floor bays: 16 - 25m2.
COFLEX CAJ invisible expansion joints in pvc
profilitec > Accessories
COFLEX CAJ invisible expansion joints in pvc “Invisible” COFLEX CAJ expansion joints entirely integrate into the 5mm grout width. The profiles in co-extruded synthetic resin are composed of rigid, perforated anchoring flanges and a durable, soft upper surface which is resistant to mildew, bacteria, weathering, corrosion, wear and UV rays. They are are conceived to subdivide large tile bays in ceramic tile flooring. Suitable for indoor and outdoor applications; the profile section provides limited protection to the tile edge. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2. Dilatation joints COFLEX CAJ installation INSTALLATION: • Select the profile according to the tile thickness. The movement joint should remain 5 +/- 1mm below the floor elevation. • Apply tile adhesive to the substrate. • Position the movement joint in correspondence with the expansion joints in the underlying substrate. AF: This is not an appropriate procedure. Cutting in to mortar beds or substrates more than 12 hours after a pour is ineffective. • Lay tiles flush against the perforated flanges. • Completely fill the residual space between the profile and tile with grout.
COFLEX CAJP edging expansion joints in pvc
profilitec > Accessories
COFLEX CAJP edging expansion joints in pvc CAJP is a Perimeter "invisible" expansion joint for floors. The perimeter joint has only one sheared flap (the part that is installed under the tiles) and therefore can be installed close to the wall in the junction with the floor. It offers the advantage given the very small size of the upper part (5 mm) of being not very evident and of being almost confused with the joint. It is extremely elastic and compressible and it is recommended for most ceramic floors. Made of co-extruded synthetic material, with a soft exposed part and stiffer fixing flange. Designed for splitting large tiled areas into smaller areas. Plastic is sufficiently resistant to most of the chemical agents present at the time of installation, wear, time and UV rays. They always maintain good flexibility and resistance to attack by fungi and bacteria. Suitable for indoor and outdoor use: they offer limited protection at the edge of the coating. Suggested modules: 16 m² (see UNI 11499: 2013 standard) in case of stable surfaces. Typical application situation: shops, recreational areas such as hotels, sports centers and schools. Dilatation joints COFLEX CAJP installation INSTALLATION: • Choose a joint with a height exactly equal to the thickness of the tile. The joint must in no case protrude from the surface of the coating but must be less than 0.5 ÷ 1 mm. • Apply the adhesive normally with the trowel. • Position the joint at the level of the existing screed cut (if it does not exist, cut the screed for at least 2/3 of its thickness). • Proceed with the laying of the tiles along the flanges of the joint, bringing them to the level of the profile, taking care that the latter are solidly anchored and sunk into the adhesive. • Fill the gap between the tile and the profile with the appropriate mortar.
COFLEX CE expansion joints in pvc
profilitec > Accessories
COFLEX CE expansion joints in pvc COFLEX CE is a synthetic resin movement joint designed to subdivide large tile bays. The profile size is chosen according to the tile thickness and should remain 5 +/- 1mm below the floor elevation. The joint must be laid in correspondence with joints in the underlying substrate. Exclusively suitable for pedestrian traffic, this profile provides limited protection to the tile edges and compensates slight differential movement due to substrate contraction and expansion. Install with tile adhesive. Suggested floor bays: 16m2.
COFLEX CA joints in synthetic material
profilitec > Accessories
COFLEX CA joints in synthetic material Conceived to subdivide large tile bays, COFLEX CA movement joints in co-extruded synthetic resin are composed of rigid, perforated anchoring flanges and a durable, soft upper surface which is resistant to mildew, bacteria, weathering, corrosion, wear and UV rays. Suitable for indoor and outdoor applications; the profile section provides limited protection to the tile edge. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2. How to install joints COFLEX CA INSTALLATION: • Select the profile according to the tile thickness. The movement joint should remain 5 +/- 1mm below the floor elevation. • Apply tile adhesive to the substrate. • Position the movement joint in correspondence with the expansion joints in the underlying substrate. • Lay tiles flush against the perforated flanges. • Completely fill the residual space between the profile and tile with grout.
COFLEX CKM expansion joints for mortar bed.
profilitec > Accessories
COFLEX CKM expansion joints for mortar bed. COFLEX CKM technical sliding expansion joints are conceived for thick-set installations. Two metal sides interlock and slide with an internal gap of +/- 2mm, redistributing differential movement due to material compression and expansion. It offers durability and high resistance to vertical loads with a modern design. The profile is to be assembled on site; the gap between the metal sides must be infilled with rubber foam strips. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16 - 25m2. How to install joints COFLEX CKM INSTALLATION: • Immediately prior to installation, assemble the two metal sides with the provided rubber foam strips. • Align and position the expansion joint in the mortar bed. • Lay the tiles as normal. • Level the tile and profile joint. • Completely fill the residual space between the profile and tile with grout.
COFLEX CMB modular joint for mortar bed
profilitec > Accessories
COFLEX CMB modular joint for mortar bed COFLEX CMB is a modular, mortar bed expansion joint: a co-extruded wide-flanged base profile which is interlocked with COFLEX CM modular clips that adapt the profile to almost any height. The profile is conceived to subdivide the mortar bed into bays according to the underlying slab. As the wide flanges securely position the profile, it can also be used as formwork. Modular joints system COFLEX CMB The co-extruded base profile is composed of two synthetic resins. The base flanges are in made of rigid Resil while the central joints are in a softer Resinflex. The system can be easily adapted to almost any height by interlocking the modular COFLEX CM clips: minimum height of 30mm, with vertical clicks at 15 - 20mm intervals. The COFLEX CMB modular, mortar bed expansion joint should be used with an additional expansion joint at the tile floor level, such as a COFLEX CA profile, to allow differential movement and prevent tile cracking and tenting.
COFLEX CM joints: modular system of different heights for mortar beds
profilitec > Accessories
COFLEX CM joints: modular system of different heights for mortar beds COFLEX CM is a modular expansion joint system composed of clips that vertically interlock to create movement joints that match the height of the mortar bed + tile flooring. The system consists of two co-extruded clips: open clips (CM 200 P) which click into each other at 15 - 20mm intervals to achieve the desired height, and a closed clip (CM 300 P) with an upper visible surface placed at the floor level to receive the tile edge. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16 - 25m2. How to install joints COFLEX CM INSTALLATION: • Align and position the expansion joint so that it slightly protrudes above the mortar bed. • Lay the tiles as normal. • Level the joint until it is completely embedded and flush with the tile edge. • Completely fill the residual space between the profile and tile with grout.
COFLEX CF joints in synthetic material for mortar beds
profilitec > Accessories
COFLEX CF joints in synthetic material for mortar beds COFLEX CF mortar bed movement joints in co-extruded synthetic resin are conceived to subdivide large tile bays. Exclusively suitable for pedestrian traffic, this profile provides limited protection to the tile edges and compensates slight differential movement due to substrate contraction and expansion. Install with tile adhesive. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2. How to install joints COFLEX CF INSTALLATION: • Align and position the expansion joint so that it slightly protrudes above the mortar bed. • Lay the tiles as normal. • Level the joint until it is completely embedded and flush with the tile edge. • Completely fill the residual space between the profile and tile with grout.
COFLEX CD modular joints for mortar installation in synthetic material
profilitec > Accessories
COFLEX CD modular joints for mortar installation in synthetic material COFLEX CD mortar bed movement joints in co-extruded synthetic resin are conceived to subdivide large tile bays. Extension clips may be vertically interlocked to match high thicker mortar beds. Exclusively suitable for pedestrian traffic, this profile provides limited protection to the tile edges and compensates slight differential movement due to substrate contraction and expansion. Install with tile adhesive. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2. How to install joints COFLEX CD INSTALLATION: • Align and position the expansion joint so that it slightly protrudes above the mortar bed. • Lay the tiles as normal. • Level the joint until it is completely embedded and flush with the tile edge. • Completely fill the residual space between the profile and tile with grout.
COFLEX CTM metal expansion joints with removable rubber insert
profilitec > Accessories
COFLEX CTM metal expansion joints with removable rubber insert COFLEX CTM expansion joints are composed of a metal structure and a flexible yet durable central infill that can be ground and polished on-site. Due to their resistance to corrosion and wear, the profiles are ideal for resin-based terrazzo and natural stone tile layings. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2.
JOINTEC GC pvc joints for concrete floors
profilitec > Accessories
JOINTEC GC pvc joints for concrete floors JOINTEC GC patented PVC joints are conceived for industrial poured concrete floors. The profiles are designed to create a 5x5m grid at the floor level, into which the concrete is poured, cured, and polished with a floor grinder. The profiles themselves act as a level line for the pour, creating state-of-the-art concrete floors with one simple process. Joints JOINTEC GC plus The drawing below shows how JOINTEC GC profiles control movement throughout the floor layout and prevent cracking of the concrete: Fast and efficient assembly with long-lasting results. How to install joints JOINTEC GC Expansion joints around the perimeter of the floor layout provide concrete with the necessary gap for differential movement. JOINTEC GC profiles coupled with the GCP and GCR synthetic inserts in soft Resilflex allow the concrete to be poured, leveled and cured in one simple step, while still accommodating its expansion and contraction. The perimeter joint eliminates the need for base boarding.
COFLEX CR: hygienic connection between floors and walls
profilitec > Accessories
COFLEX CR: hygienic connection between floors and walls The COFLEX CR patented series is designed as a cove-shaped wall-to-floor transition profile that allows elasticity and movement. A soft, internal section provides acoustic insulation, deadening the impact noise of footsteps. The profile is composed of a co-extruded synthetic resin profile and KERAJOLLY KJ profiles that interlock to perfectly match the tile thickness. In addition, they are easy to clean and designed to meet hygiene standards in public spaces subject to sanitary inspection. Clip System and different height With the modular Clip System, COFLEX CR profiles can be adapted with KERAJOLLY KJ profiles which interlock into the profile section, matching all tile thicknesses on the market. The KERAJOLLY KJ profiles act as perforated side flanges, hence adapting COFLEX CR profiles to different thicknesses, saving time in the installation process and guaranteeing impeccably durable results. Example of COFEX installation: If the tile thickness is 10mm, use the KERAJOLLY KL 8mm profile. When interlocked with the COFLEX CR profile, the total thickness is 10mm, perfectly matching the wall tile thickness.
JOINTEC GT profiles for industrial floors
profilitec > Accessories
JOINTEC GT profiles for industrial floors When the concrete cast has been completed, control joints must be cut to avoid random cracking due to temperature changes and drying shrinkage. Equipped with an embedded fiberglass thread, JOINTEC GT synthetic resin profiles are designed to be inserted directly into the control joints. The innovative fiberglass thread prevents lengthening or shrinking of the profile typical of traditional control joint fillers. The flexible shape of the profile section can be inserted into cuts 3.5 - 5.5mm wide.
COPRITEC CP joint covers for large buildings
profilitec > Accessories
COPRITEC CP joint covers for large buildings In industrial and commercial flooring, large continuous structural bays, and between two bearing structures, a separation joint cover is needed to allow differential movement between adjacent materials. COPRITEC CP is equipped with a unique self-adhesive that provides excellent movement absorption. If using screws to anchor the profile, apply the screws on only one side, allowing the other side to move freely, accommodating contraction and expansion. This profile is also suitable as bumper protection for stretchers and as wall protection rails in public buildings.
COPRITEC CPML and COPRITEC CPMP modular expansion joint covers
profilitec > Accessories
COPRITEC CPML and COPRITEC CPMP modular expansion joint covers COPRITEC CPM patented, modular expansion joint covers are custom-made to match specific site dimensions. Particularly suitable in wall and ceiling installations, they are available in two versions: flat and corner angle. The profile is composed of two lateral plates anchored with screws and dowels, and a custom-made, central, flat or angled element that slides between the plates and conceals the expansion joint. Cover joint COPRITEC CPM structure The profile is made up of two lateral elements which act both as a fixing system with screws and dowels, and for containing and moving the aluminium sheet supplied in the width to measure. The whole is supplied in silver anodised aluminium.
BORDERTEC BBS edging finishing and protection profile
profilitec > Accessories
BORDERTEC BBS edging finishing and protection profile BORDERTEC BBS perimeter profiles trim for 10 mm tiles and protect the exposed concrete edge on balconies and balconies. The tiled flooring can be laid flush against the indented lip of the profile section. Terminal profiles drainage BORDERTEC BBS A protruding drip edge in the profile protects the DRAINTEC 8 matting placed between the mortar bed and waterproof membrane. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile. How to install border profiles for balconies BORDERTEC BBS INSTALLATION INSTRUCTIONS: • Select the profile according to the tile and mortar bed thicknesses. • Position the profile around the perimeter of the balcony or terrace simultaneously with the tile laying.
BORDERTEC BCS edging profile for ceramic balconies
profilitec > Accessories
BORDERTEC BCS edging profile for ceramic balconies BORDERTEC BCS perimeter profiles trim for 12,5 mm tiles and protect the exposed concrete edge on balconies and balconies. The tiled flooring can be laid flush against the indented lip of the profile section. Terminal profiles drainage BORDERTEC BCS A protruding drip edge in the profile protects the DRAINTEC 8 matting placed between the mortar bed and waterproof membrane. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile. How to install border profiles for balconies BORDERTEC BCS INSTALLATION INDICATIONS: • Choose the height of the profile corresponding to the height of the tile and suitable for the thickness of the screed. • Position it along the edge of the surface to be tiled and install it together with the laying of the tile.
BORDERTEC BHS perimeter profiles for terraces and balconies for 2 cm paving tiles.
profilitec > Accessories
BORDERTEC BHS perimeter profiles for terraces and balconies for 2 cm paving tiles. BORDERTEC BHS perimeter profiles trim for 20 mm tiles and protect the exposed concrete edge on balconies and balconies.The tiled flooring can be laid flush against the indented lip of the profile section. Designed to drip water away. External corners and joints for BORDERTEC BHS A protruding drip edge in the BHS profile protects the DRAINTEC 8 matting placed between the mortar bed and waterproof membrane. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile.
BORDERTEC BBO edging profiles for terraces and balconies
profilitec > Accessories
BORDERTEC BBO edging profiles for terraces and balconies Bordertec BBO is a perimeter profile for finishing and protecting the exposed concrete edge of balconies and balconies for ceramic tiles 10 mm thick. The optimized section of the profile defines a perforated drainage channel on the edge of the profile to facilitate the discharge of water and residual humidity. Terminal profiles drainage BORDERTEC BBO with water and residual humidity outlet The optimized section of the profile defines a perforated drainage channel on the edge of the profile to facilitate the discharge of water and residual humidity. Leave a suitable space between the different elements for thermal expansion by masking the joint with the joint element.
BORDERTEC BCO edging profiles for terraces and balconies
profilitec > Accessories
BORDERTEC BCO edging profiles for terraces and balconies Bordertec BCO is a perimeter profile for finishing and protecting the exposed concrete edge of balconies and balconies for 12.5 mm thick ceramic tiles. The optimized section of the profile defines a perforated drainage channel on the edge of the profile to facilitate the discharge of water and residual humidity. Terminal profiles drainage BORDERTEC BCO with water and residual humidity outlet The optimized section of the profile defines a perforated drainage channel on the edge of the profile to facilitate the discharge of water and residual humidity. Leave a suitable space between the different elements for thermal expansion by masking the joint with the joint element.
BORDERTEC BHO perimeter profiles for terraces and balconies for 2 cm paving tiles
profilitec > Accessories
BORDERTEC BHO perimeter profiles for terraces and balconies for 2 cm paving tiles Bordertec BHO is a perimeter profile for finishing and protecting the exposed concrete edge of balconies and balconies for ceramic tiles 20 mm thick. The optimized section of the profile defines a perforated drainage channel on the edge of the profile to facilitate the discharge of water and residual humidity. Designed to drip water away. Terminal profiles drainage BORDERTEC BHO with water and residual humidity outlet The optimized BHO section of the profile defines a perforated drainage channel on the edge of the profile to facilitate the discharge of water and residual humidity. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile.
BORDERTEC BOS edge protection profiles for terraces and balconies
profilitec > Accessories
BORDERTEC BOS edge protection profiles for terraces and balconies BORDERTEC BOS perimeter profiles are especially designed to finish and protect exposed concrete edges on balconies and balconies with protruding mortar bed installations. A protruding drip edge in the profile section protects the DRAINTEC 8 matting placed between the mortar bed and waterproof membrane. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile. How to install BORDERTEC BOS INSTALLATION INSTRUCTIONS: • Select the profile according to the tile and mortar bed thicknesses. • Position the profile around the perimeter of the balcony or terrace simultaneously with the tile laying.
BORDERTEC BR profile with integrated drainer for balconies and terraces
profilitec > Accessories
BORDERTEC BR profile with integrated drainer for balconies and terraces Excellent for retrofit applications, BORDERTEC BR patented profiles complete terrace tiling installations without any prior on-site preparation. The rounded profile section contains an integrated drip channel and the external corner element easily joins profile segments. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile.
BORDERTEC BBR thin edging profiles for terraces and balconies
profilitec > Accessories
BORDERTEC BBR thin edging profiles for terraces and balconies Bordertec BBR is the result of the optimization of Bordertec BBS, created to offer a solution that performs the same function but with reduced dimensions. It is a profile designed to finish balconies and balconies to be tiled. The BBR was designed to contain and protect the tile and is equipped with a drainer to allow the water to drain away, avoiding to wet the front part of the screed.
BORDERTEC BTR profiles for tiled terraces
profilitec > Accessories
BORDERTEC BTR profiles for tiled terraces BORDERTEC BTR is an innovative, patented, modular system composed of a perimeter profile for balconies and tiled balconies that interlocks onto TRIMTEC TR profiles. Together they form an integrated profile with a protruding drip edge that matches most outdoor tile thicknesses and finishes on the market. Clip System = tile thickness - 2mm. How to assembly BORDER BTR profiles for balconies Bordertec BTR si compone con i moduli aggiuntivi Art. serie TR che si infilano all’interno del modulo base realizzando l’altezza richiesta dallo spessore della piastrella. Clip system: altezza piastrella ridotta di 2 mm. To build up BORDERTEC BTR is necessary to combine BTR Border + TR Trimtec. For 10 mm Tile BORDERTEC profile use TR80 (Tile Height = TR Dimension + 2 mm)
BORDERTEC BO "L" edging profile for terraces and balconies
profilitec > Accessories
BORDERTEC BO "L" edging profile for terraces and balconies Especially designed for balconies and balconies with protruding mortar bed installations, BORDERTEC BO angle profiles finish and protect exposed concrete edges. Leave a gap to allow for thermal expansion and contraction of the different materials; conceal the gap with an appropriate profile. How to install border profiles for balconies BORDERTEC BO INSTALLATION INSTRUCTIONS: • Select the profile according to the mortar bed thicknesses. • Position the profile around the perimeter of the balcony or terrace simultaneously with the tile laying.
BORDERTEC BSR edging trims for terraces
profilitec > Accessories
BORDERTEC BSR edging trims for terraces The Bordertec BSR is recommended to contour marble and stone balconies and balconies with a waterdrip finishing element. Its reversible section allows to match two different tiles’ thickness with the same reversible profile. Bordertec BSR is equipped with the necessary special pieces for a proper installation. (One corner works also as two junctions).
BORDERTEC BD perimeter draining profile for balconies
profilitec > Accessories
BORDERTEC BD perimeter draining profile for balconies BORDERTEC BD perimeter profiles finish terrace edges and allow a perfectly level mortar bed installation. They are available with perforated drainage holes openings (used with DRAINTEC 8 matting) and without holes openings (for a waterproof terrace edge). The tiles can be installed flush against the profile or sit directly on the profile. BORDERTEC BD dry laying The profile is also suitable for dry-laid tile layings on gravel; leave a gap to allow for thermal expansion and contraction of the different materials. How to install border profiles for balconies INSTALLATION INSTRUCTIONS: • Position the profile at the required height and anchor it on all sides of the installation as needed. • Cast the mortar bed in the profile frame. • Lay tiles as normal.
BORDERTEC BD20 perimeter draining for 2 cm paving tiles.
profilitec > Accessories
BORDERTEC BD20 perimeter draining for 2 cm paving tiles. Bordertec BD20 is a perimeter profile for finishing and protecting the exposed concrete edge of balconies and balconies for 20 mm big porcelain pavers. With simple and minimalist shapes, the profile is equipped with oval holes for the drainage of water and a special design to facilitate the flow and avoid water infiltration in the screed. Available in Pastel Grey (A22) or Micaceous (A50).
