COFLEX CR corner joint between floors and walls - 2d files - 3d files

PRODUCT DESCRIPTION

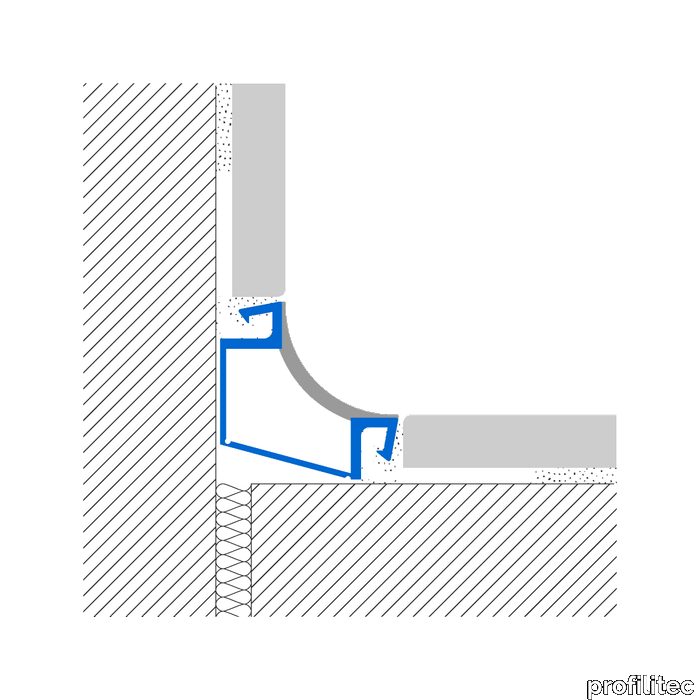

COFLEX CR corner joint between floors and walls The COFLEX CR patented series is designed as a cove-shaped wall-to-floor transition profile that allows elasticity and movement. A soft, internal section provides acoustic insulation, deadening the impact noise of footsteps. The profile is composed of a co-extruded synthetic resin profile and KERAJOLLY KJ profiles that interlock to perfectly match the tile thickness.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Coflex CR - Datasheet - Profilitec_Catalogue-page_Coflex-CR_NA.pdf
