MOSAICTEC SJM square trims for mosaics - 2d files - 3d files

PRODUCT DESCRIPTION

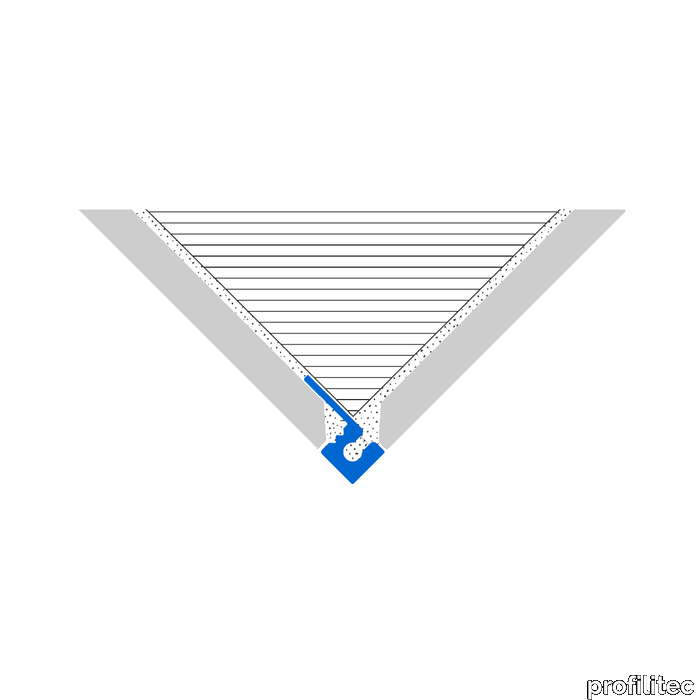

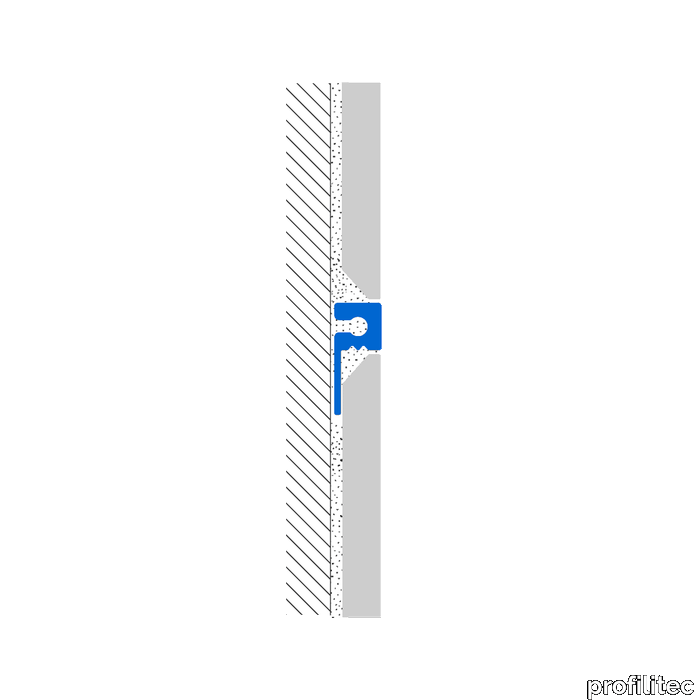

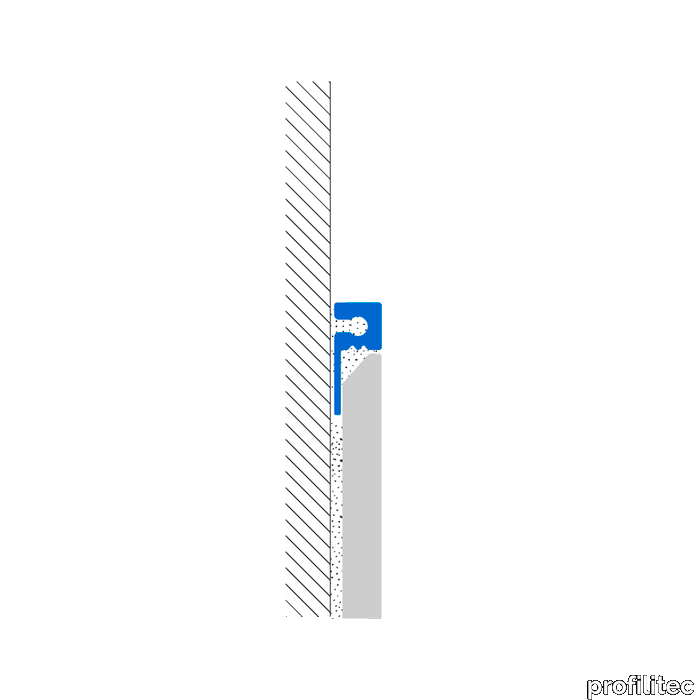

MOSAICTEC SJM square trims for mosaics MOSAICTEC SJM is a multipurpose profile especially conceived for mosaics. It can also be used for edging, external corners or as a decorative insert. Its short and thin flange grasps the wall covering, creating a clean and level finished surface. A specially-designed multipurpose cubic endcap suits all installation needs.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Mosaictec SJM - Datasheet - Profilitec_Catalogue-page-Wall_Mosaictec-SJM_NA.pdf
