MUDR tileable linear drain channel - 2d files - 3d files

PRODUCT DESCRIPTION

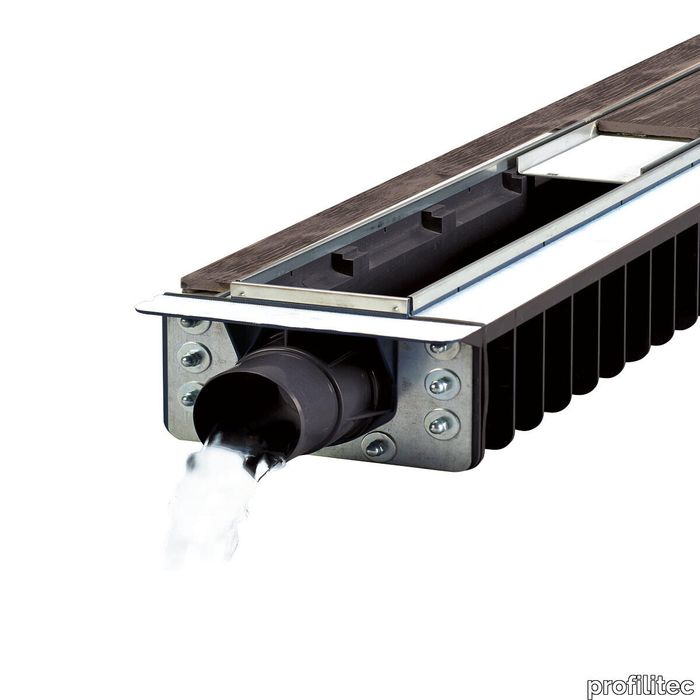

MUDR tileable linear drain channel The Multidrain MUDR is a system that allows the realization of a pre-slope tiled linear drain by combining different modules up to 6.25 meters using only one discharge point. The system needs 7 cm height under tile.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

MUD MUDR Brochure - Brochure MUD e MUDR_2019 - pagine singole.pdf
