ViCork Lat 30 by Vicoustic
Key details
| SKU | B06482 |
|---|---|
| Brand | Vicoustic |
| Category | Accessories |
| Dimensions | W 3 x D 3 x H 3 cm |
Description

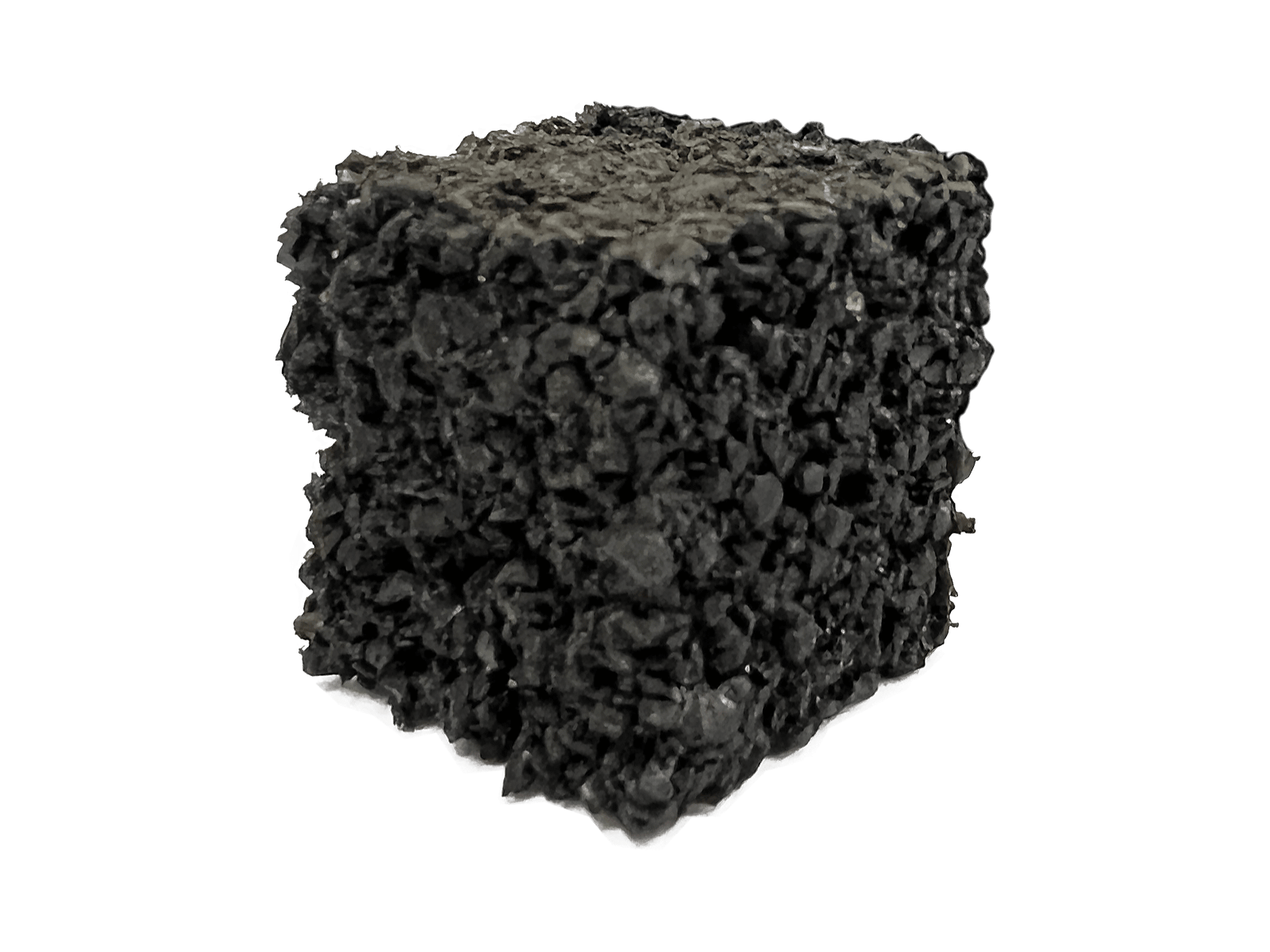

ViCork Lat is an isolated steel floor batten system for the support of floating floors and sprung-floor applications.This product can support a variety of formwork and it’s extremely quick to install. The pads within the ViCork Lat can be changed to meet project specific natural frequency and damping requirements.Technical Information
Density: 710 kg/m3
Color: Black
Temperature Range: Constant (- 10 / + 100oC)
Tensile Strength: > 0.4 MPa (ASTM F152)
Elongation at Break*: > 40% (ASTM F152)
Compression set 50% / 23o / 70h*: < 10% (DIN 53572)
Compressibility at 2.8 MPa*: 40 - 60% (ASTM F36)
Recovery at 2.8 MPa*: > 90% (ASTM F36)
Shore hardness: 35-45 A ( ASTM D2240)
* with respect to a flat-shaped material specimen.Installation - Required information to determine ViCork LAT mesh:
Weight of the floating floor to be supported;
The imposed dead and live loads on the floating floor;
The required system natural frequency or sound insulation performance criteria.
Frequently Asked Questions
What are the dimensions of the ViCork Lat 30?
The ViCork Lat 30 measures W: 3 x D: 3 x H: 3.
Is the ViCork Lat 30 suitable for commercial projects?
Yes, the ViCork Lat 30 by Vicoustic is suitable for both residential and commercial interiors. It is commonly specified by interior designers and architects for hospitality, office, and retail environments.
Specifications
| Dimensions | W: 3 x D: 3 x H: 3 cm |
|---|---|
| SKU | B06482 |
| Brand | Vicoustic |
| Category | Accessories |
