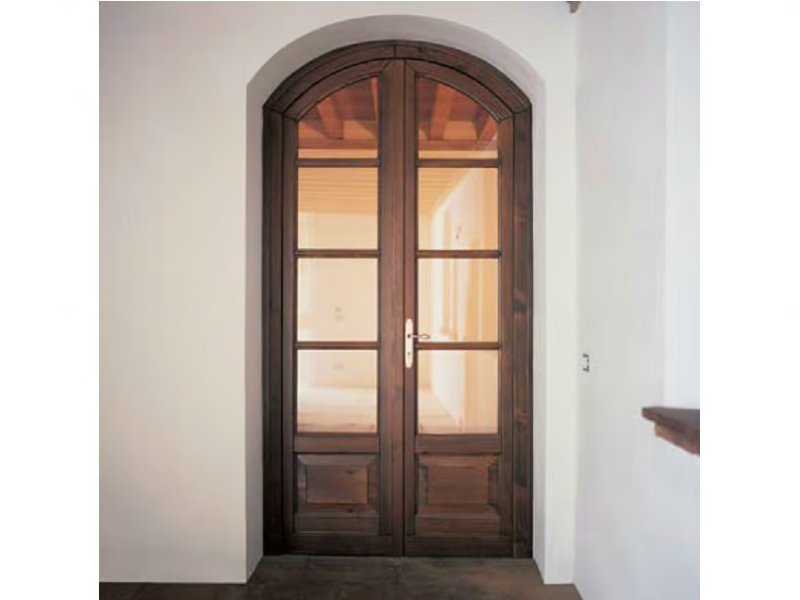

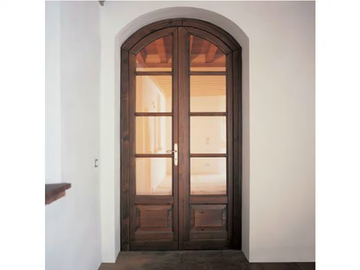

KLIMA 80 - Pine patio door by CARMINATI SERRAMENTI
finishes > Finishes accessories
Description
Wooden window.Frame thickness 80x82.Shutter thickness 80x80/132.Technical dataUf calculation for a single 1100x1450 window pane.Thermal transmittance of the frame: Uf = 1.39 W/m2K for light wood (i.e. fir) – UNI EN 10077-2Thermal transmittance of the frame: Uf = 1.71 W/m2K for for heavy wood (i.e. oak) – UNI EN 10077-2Thermal transmittance of the window to: UW = 1.2 W/m2KAir permeability: EN 1026 – UNI EN 12207 Class 4Water tightness: EN 1027 – UNI EN 12208 Class 9AWind resistance: EN 12211 – UNI EN 12210 Class C5Noise reduction up to: RW = - 44 dBWooden varnishingPerformed in three phases before the framework is assembled:1. primer application by immersion2. intermediate spray finish3. final spray finishThe entire procedure is performed using ADLER water-based products and the framework also carries a warranty regarding the duration of the varnish (see the illustration brochure).All the surfaces are completely sanded and finished by hand.Window glass4/20/4 for windows with all types of openings.33.1af/15/33.1af safety glass for patio doors with all types of openings.Cross sectionsCross section of a EURO 68 M window with modern glass holderCross section of a EURO 68 C window with style glass holderWOODEN WINDOWS AND DOORSThe result of a constant and strong passion.The result of constant and strong passion, which led over the years to the creation of numerous applications, both from technical and aesthetic points of view, through a wide variety of essences, colours, surfaces, sizes and decorations. To the more traditional lines we have added through years new formats, with trendy colours, suitable for interior designing and with many types of finishes.Carminati Serramenti windows and doors are designed to guarantee an exclusive and innovative design and elegant and well-finished shapes combined with a high level of thermal and acoustic insulation.It is only through the use of the best raw materials and the respect of high quality standards that Carminati Serramenti has become synonym and symbol of the “Made in Italy”.All windows and doors are fully customisable and adaptable to any need and architectural context and are available in different finishes.The installation of our products is made by qualified and carefully selected experts in order to guarantee that qualitative performances of thermal and acoustic insulation are fully respected.Klima 80 wooden windows provide excellent thermal and acoustic performances.They are ideal for new and refurbished houses and suitable for homes with low energy consumption thanks to the use of adequate glasses and meet thermal and acoustic requirements set by current laws.
Specifications
| Collection | Klima 80 |
|---|---|
| Brand | CARMINATI SERRAMENTI |
| Category | Finishes accessories |
Frequently Asked Questions
Is the KLIMA 80 - Pine patio door suitable for commercial projects?
Yes, the KLIMA 80 - Pine patio door by CARMINATI SERRAMENTI is suitable for both residential and commercial interiors. It is commonly specified by interior designers and architects for hospitality, office, and retail environments.
What collection does the KLIMA 80 - Pine patio door belong to?
The KLIMA 80 - Pine patio door is part of the Klima 80 collection by CARMINATI SERRAMENTI.
