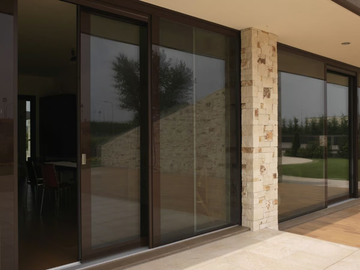

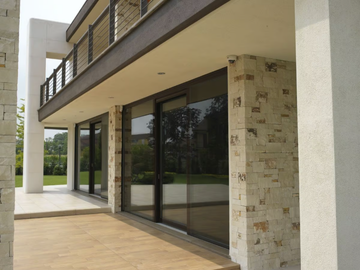

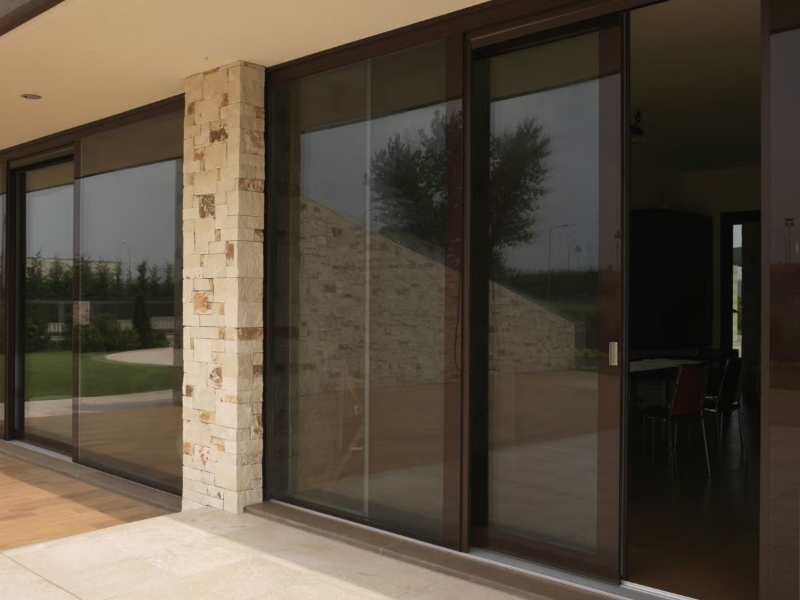

VITRUM 90 - Lift and slide wood and glass patio door by CARMINATI SERRAMENTI
finishes > Finishes accessories
Description
VITRUM 90 windows and doors are realized internally in wood and externally in glass and combine excellent thermal and acoustic performances with an extraordinary elegance.The external glass can be back painted with any colour; this allows the windows the matching of the window with the external aesthetic of all modern houses without renouncing the warmth of wood in the interiors. Double glazing is fixed to the wooden pane thanks to structural gluing; the internal wooden part can be realized in different types of wood and in different natural and delicate finishes.They have the highest reachable values of air and water tightness and wind resistance. Vitrum 90 represents the aesthetic innovation combined with the highest technical performances.TypeWooden-glass-aluminium window.Frame thickness 77x90 (wood diameter 62x70).Shutter thickness 89x82 (wood diameter 78x82/110).Technical dataUf calculation for a single 1100x1450 window pane.Thermal transmittance of the frame: Uf = 1.33 W/m2K for light wood (i.e. fir) – UNI EN 10077-2Trasmittanza termica del telaio: Uf = 1.63 W/m2K for for heavy wood (i.e. oak) – UNI EN 10077-2Thermal transmittance of the window up to: UW = 1.1 W/m2KAir permeability: EN 1026 – UNI EN 12207 Class 4Water tightness: EN 1027 – UNI EN 12208 Class 9AWind resistance: EN 12211 – UNI EN 12210 Class C5VarnishingPerformed in three phases before the framework is assembled:1. primer application by immersion;2. intermediate spray finish;3. final spray finish.The entire procedure is performed using ADLER water-based products and the framework also carries a warrantyregarding the duration of the varnish (see the illustration brochure).All the surfaces are completely sanded and finished by hand.The glass is varnished in various colours using screen printing.Window glass6 TEMPERED/20/4/20 for windows with all types of openings.33.1af/15/33.1af safety glass for patio doors with all types of openings.Cross sectionsCross section of a complanar wooden/glass VITRUM 90 window (internal view)Cross section of a complanar wooden/glass VITRUM 90 window (external view)WOODEN-GLASS WINDOWS AND DOORSThe transparency of glass as cladding for windows and doors.The eternal and infinite transparency of the glass led Carminati Serramenti to choose this material as cladding for its windows and doors.Glass becomes a structural element by definition, combining the technical with aesthetic aspect.Our continuous collaboration with designers, project managers and architects made possible the realization of new solutions for space furnishing with harmony and transparency.Innovative architecture and interior design solutions, manufactured in wood and metal, so to combine technology with aesthetics.
Specifications
| Collection | Vitrum System |
|---|---|
| Brand | CARMINATI SERRAMENTI |
| Category | Finishes accessories |
Frequently Asked Questions
Is the VITRUM 90 - Lift and slide wood and glass patio door suitable for commercial projects?
Yes, the VITRUM 90 - Lift and slide wood and glass patio door by CARMINATI SERRAMENTI is suitable for both residential and commercial interiors. It is commonly specified by interior designers and architects for hospitality, office, and retail environments.
What collection does the VITRUM 90 - Lift and slide wood and glass patio door belong to?
The VITRUM 90 - Lift and slide wood and glass patio door is part of the Vitrum System collection by CARMINATI SERRAMENTI.
