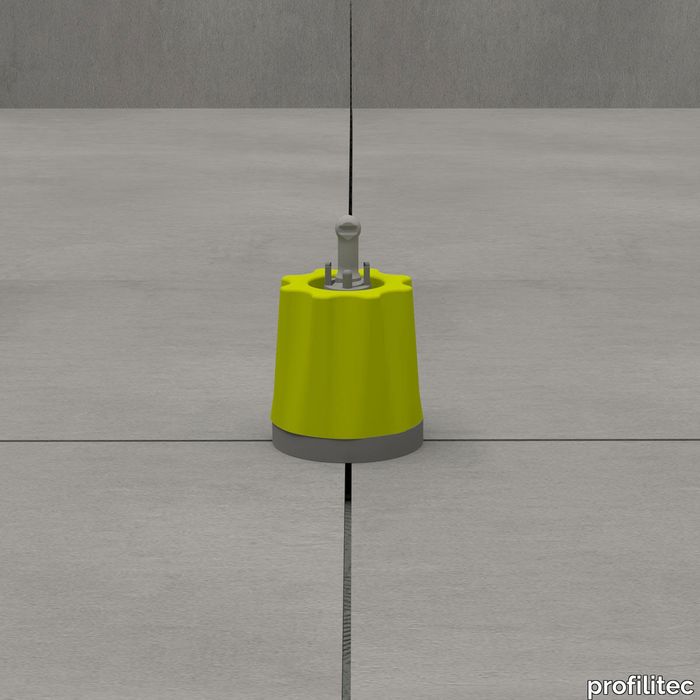

Leveltec leveling system, the LEV / M cap - 2d files - 3d files

PRODUCT DESCRIPTION

Leveltec leveling system, the LEV / M cap Leveltec is a revolutionary tiling system with no current equivalents in the market. The first levelling system that requires no tools for both installation and disassembly. It is an automatic screw system that works with a simple click. The product is laid in dry conditions, without need of adhesives. The system consists of a reusable cap and a series of tie-base (linear, cross or “T”) for joints of 2 mm, 3 mm and 5 mm (according to UNI EN 11493) or joints of 1 mm. The cap is compatible with all the tie-bases that should be chosen according to the type of tile and the installation to do. Self-levelling function for tile laying The use of the Leveltec allows the perfect alignement of the upper surface of the floor with the surface of the wall, compensating not the non-planarity and the following glue shrinkage.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Leveltec - Brochure - Pieghevole Leveltec 2022 - web.pdf
